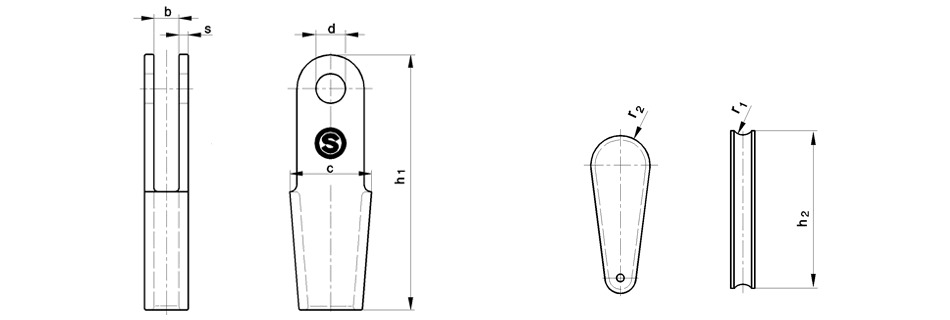

ROPE SOCKETS FORMERLY ACC. TO DIN 15315 but made of stainless steel, polished (material no.:1.4571/inox)
ATTENTION: The strength of the eye bolt must be in accordance to the strength of the wire rope.
| Rope - ø | Rope socket complete | Rope socket w. wedge | Rope socket housing | Rope wedge | Cap pin | Split pin |
|---|---|---|---|---|---|---|
| with wedge, pin and split-pin | ||||||
| 4 - 5 | SS7 0405 KB 000 315 | SS7 0405 K0 000 315 | SS7 0405 00 000 315 | K07 0405 00 000 315 | B07 0405 00 000 315 | SP7 0032 00 018 094 |
| 6 - 8 | SS7 0608 KB 000 315 | SS7 0608 K0 000 315 | SS7 0608 00 000 315 | K07 0608 00 000 315 | B07 0608 00 000 315 | SP7 0040 00 020 094 |
| 9 - 11 | SS7 0911 KB 000 315 | SS7 0911 K0 000 315 | SS7 0911 00 000 315 | K07 0911 00 000 315 | B07 0911 00 000 315 | SP7 0040 00 025 094 |
| 14 - 12 | SS7 1214 KB 000 315 | SS7 1214 K0 000 315 | SS7 1214 00 000 315 | K07 1214 00 000 315 | B07 1214 00 000 315 | SP7 0050 00 032 094 |
| 15 - 17 | SS7 1517 KB 000 315 | SS7 1517 K0 000 315 | SS7 1517 00 000 315 | K07 1517 00 000 315 | B07 1517 00 000 315 | SP7 0050 00 036 094 |
Further information
All dimensions similar to rope sockets for lifts acc. to DIN EN 13411-7.
Please find certificates and instructions also in our media library section.
Subject to technical alternations
